Tags: braga


Buyer Rates (0/5):
  • Ex Tax:R8,525.97
  • Brands Braga
  • Product Code: S-LTOY303S10
  • Availability: In Stock

Available Options

BRAGA Ultra Premium series car radio  is a ultra premium head unit of high quality production. The car stereo contains the best components of increased efficiency with high performance. The car stereo is completely similar to the Ultra-premium series, except for the RAM and built-in memory, which makes it possible to choose the desired combination of "price: amount of memory". Buying a car radio Ultra Premium series means getting one of the best high-performance devices on the market.

Key features
Brand / Manufacturer:BRAGA
Operation system:Android 13
Display:12.3 inches QLED / IPS (2.5D)
Resolution:HD 1920х720 px
Processor:1.6 GHz Octa-core (UIS7862)
Memory:2Gb/4 Gb LPDDR4
Built-in storage:32GB/64 Gb
Apple CarPlay / Android Auto:Built-in

BRAGA  Android Car Stereo Navigation In-Dash Head Unit has a lot of advantages as opposite to the original car multimedia system. OS Google Android 13 based car stereo is much more functional than other operating systems car devices. Everything that is available in your modern smartphone or a tablet now it is easy to access in Braga multimedia system. Everything what you need is at arm's length! The bright 10 inches QLED / IPS (2.5D) screen is visible everywhere at sunny weather. There are excellent HI-FI soundpremium qualityhigh performance, multitasking, easy to use, unique simple interface and much more! Modern components and optimized software make BRAGA  a leader among premium automotive head units!

BRAGA Android 13 Car Navigation Head Unit  runs on the high-performance platform with 1.6 GHz Octa-core  processorIncreasing the number of cores improves performance and allow to make the device much faster. Reaction to the user signals is instantaneous and without any "freezes". Diagonal screen is  10 inches QLED / IPS (2.5D) with HD 1920х720 px LCD resolution, display brightness is very high and it will be seeable even at sunny day. When car lights are switched on, the screen brightness automatically becomes darkfield, also the brightness function can be tuned in a manual way and enables to customize the screen with individual preferences. Capacitive touchscreen technology allow to control all functions easy and safely while car driving.


Special features:

  • 12.3 inches QLED / IPS (2.5D), capacitive multi-touch screen;
  • HD 1920х720 px LCD resolution;
  • Android 13;
  • 1.6 GHz Octa-core (UIS7862) processor;
  • 32GB/64 Gb, expansible through SD card;
  • GPS / Glonass positioning system, external antenna is included;
  • FM / AM radio with RDS and memory for 36 radio stations, high sensitivity NXP TEF6686 FM module;
  • Hi-Fi sound processor, 4 x 50W sound amplifier MOSFET TDA 7850 class AB ;
  • Equalizer: Bass / Middle / Treble, Loud. Cutoff frequency: BassF / MiddleF / TrebleF. Separate volume control for loud speaker (subwoofer);
  • On-board WI-FI, Hotspot mode (access point for other Wi-Fi devices);
  • 3G / 4G Internet is supported through an external USB modem (isn't included);
  • Bluetooth HandsFree. Phonebook copy function and phonebook search. Separate volume control. A2DP music playback;
  • TMPS (tire-monitoring pressure system) and OBD2 adapters, connection through Bluetooth;
  • Steering wheel buttons, supporting 3 programmable functions for one button (short / long / repeat press);
  • RGB front panel buttons backlight, every color can be adjusted;
  • Faceplate buttons function can be changed, 3 programmable functions for one button (the same as steering wheel buttons);
  • Backup camera, supporting every rear cameras (some models support original factory cameras, dynamic lines and park assistance system);
  • Front parking camera supporting through the "FCAM" or "AUX Video In" port connection;
  • Standby Mode (10, 30, 60 minutes), the unit will be switched on for 1 second;
  • Android cold boot time for 5-10 seconds;
  • Supporting of USB Flash, SD Card (up to 64 Gb) and hard drives (up to 1 Tb);
  • Supported video formats: RMVB, MKV, MOV, WMV, AVI, MPG, TS with 1080P, H.264, etc.;
  • Supported audio formats: MP3, WMA, WAV, OGG, FLAC, etc.;
  • Support Full HD 1080p video playback;
  • Video output - RCA Female (NTSC, PAL);
  • External amplifier supporting, 4 channel (Left / Right Front + Left / Right Rear), RCA Female connectors;
  • External loud speaker (subwoofer) supporting, RCA Female connector, separated sound level in the EQ settings;
  • Dynamically changing the volume depends on the vehicle speed, 3 modes: low / medium / strong;
  • Navigation voice prompts. You can choose speakers for voice navigation: front or all;
  • Microphones, there are two kinds: on-board and external. You can use handsfree function and Android voice programs (Google Voice search, Skype, voice control, etc.);
  • Video inputs: 1 x rear view camera (RCA Female connection), 1 x AUX In (RCA Female connection), some models have 1 x Front CAM input (RCA Female connection);
  • AUX Audio input, some models support factory AUX input;
  • USB / SD card port, 2 x USB ports, some models support factory USB;
  • Set up your car logo or custom logo;
  • Warranty 3 years (software) 1 year (hardware)

Package includes:

  • BRAGA Car Stereo Head Unit ;
  • Main power cable ;
  • CAN-bus module (if applicable);

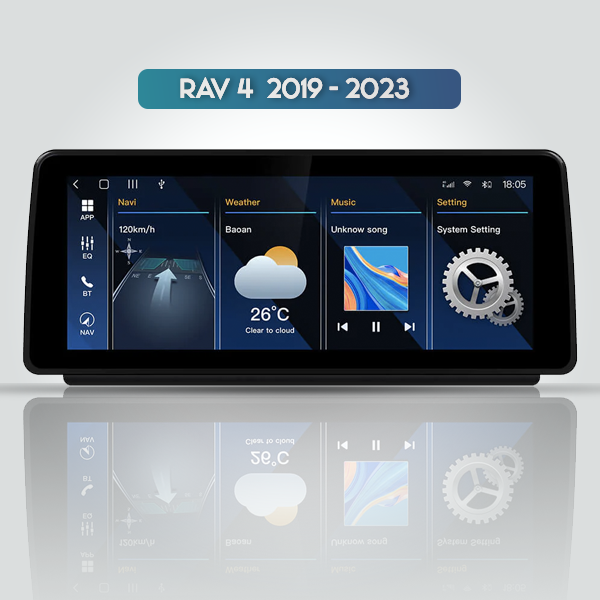

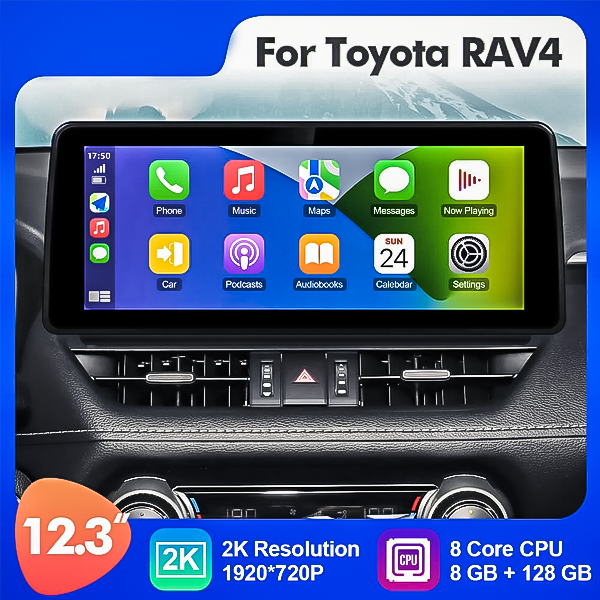

Specification Of Car Radio For Toyota RAV4 2019-

Screen Size12.3 inchStart-up TimeAbout 5-10s
CPU8Core Ram 8GRadio ChipST7708
RAM2G/4G/8GBUSB Ports2 Port
ROM32G/64G/128GImage FormatJPEG, BMP, PNG
SystemPure Android 12Internect4G + Wifi
Material TypeMetal and platicBluetoothBuilt-in
USB DVRSupport720P Rear camSupport
Voltage12VOutput Power4*48W
OSD LanguageEnglish, French, German, Italian, Korean, Polish, Spanish, Romanian, etc.

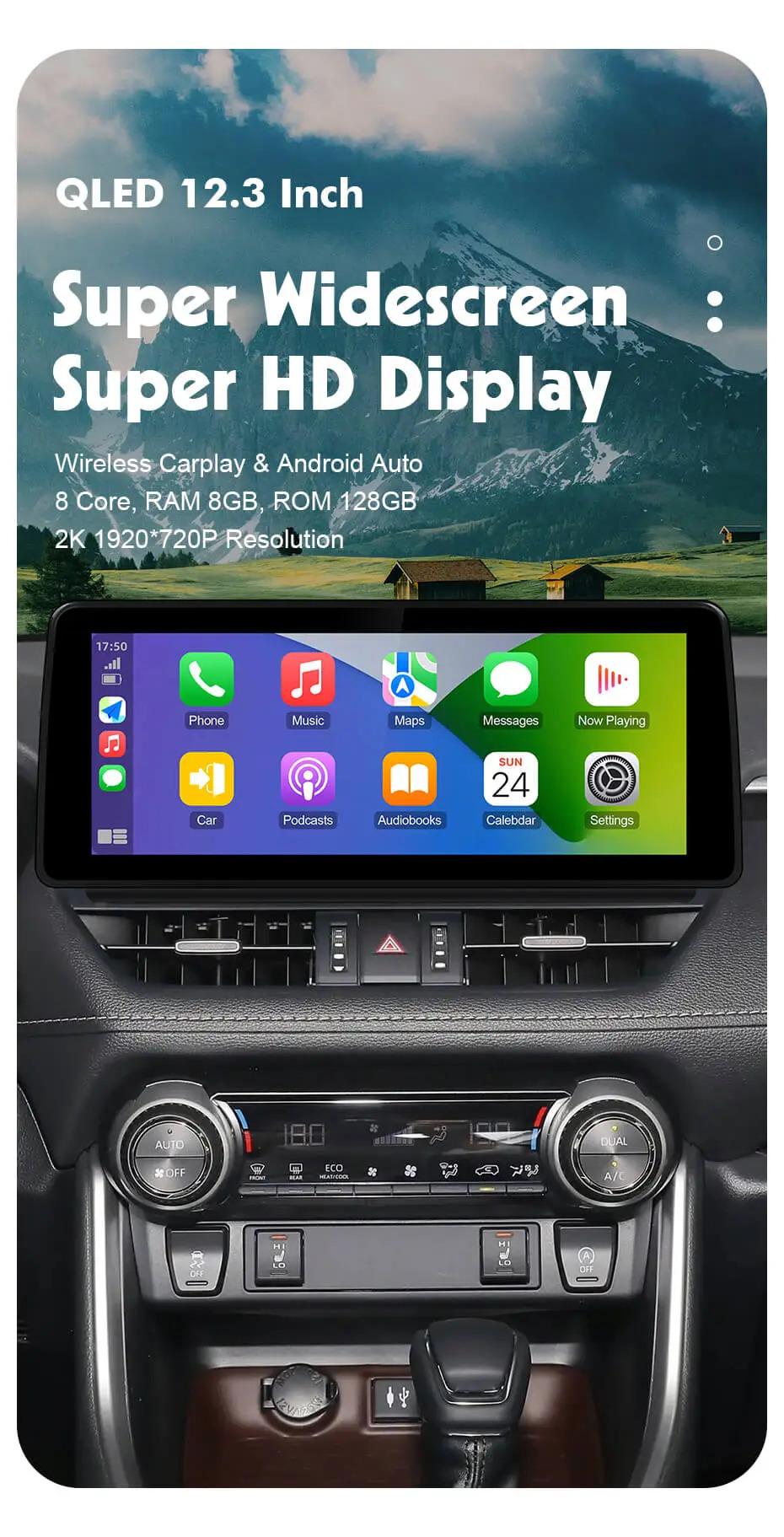

 New Upgrade, Super Widescreen

Perfectly matches the original car central control, greatly improving the grade of the interior, larger screen display, clearer resolution.

With Canbus, Support Plug in Play
Includes special connection harness and Canbus, no need to change wires, just plug and play.
Support steering wheel control;
Support parking radar, reversing camera;
Support original car information displaying, such as: fuel consumption, doors...

Why choose us?
【Support 4G Network and WiFi】
Support Google Play, you can download and install App from it.
Support On-line music, video, radio, navigation, such as: Spotify, Youtube, Netflix, maps...
Includes the 4G Sim card slot and antenna, you can put in your 4G card and connect with internet.

【Support GPS and GLONASS Navigation】
Includes GPS antenna, support both GPS and GLONASS;
Support On-line maps, you can use the latest map version and get the real-time traffic conditions.
Help you avoid congestion and plan the best route.

【Supports Carplay & Android Auto】
Supports wireless & wired Carplay & Android Auto.
You can connect with your mobile, the radio screen will come into Carplay or Android Auto interface.
You can run the mobile App, the App will run in the radio also.
Such as: Navigator, Music and so on.
Enhance the interaction between mobile phone and radio to make driving safer and more convenient.

【Bulit-in DSP Sound System】
16 bands EQ setting, DIY your desired music style;
Sound field adjustment, adjust the surround sound, let you immerse yourself in the ocean of music;
Subwoofer output adjustment to enhance the rhythm of music and eliminate driving fatigue.

【FM/AM/RDSRadio, Bluetooth5.0】
Bulit-in TDA7708 radio chip, the best radio chip takes the best signal receiving;
Bulit-in Bluetooth 5.0, support mobile phone handfree, music, phonebook;
5G WiFi, more stable and faster. Bring you a better online experience.

Introducing our new network functions!
1. Network Radio: Enjoy a collection of high-quality Internet radio stations from 20 countries with our built-in network radio. Simply connect to the Internet and choose from thousands of program resources at your leisure.
2. On-line Weather: Keep up-to-date with real-time weather information in major cities around the world with our built-in on-line weather feature. The weather information will be displayed on the main menu, with the city automatically changing according to your location.
3. Professional Voice Control: Experience the convenience of our built-in professional version voice control, accompanied by AI assistant, for a relaxing driving experience. With support for online voice commands such as "Go to Airport" or "Play Beat It on Spotify", you can easily navigate your way while keeping your hands on the wheel.
4. Online Weather Activation: To activate our On-line radio and voice control features, please contact us to purchase the activation code.

New Design, Excellent Quality!
1. 12.3" widescreen, the latest floating screen designing, make the car interior more fashionable and high-end;
2. Support slipt screen, the screen can be divided into two parts, one side display the navigation and the other side play video;
3. Supports 1080P video playback, clear and vivid; supports On-line video;
4. ST7708 Radio receiver chip. It has a very good radio reception effect and anti-interference performance, with FM/AM/RDS function;

Strong Core Brings Strong Power!
1. 8 Core CPU, stable and fast. Ultra premium Series is Cortex 8*A55, T72 Series is Cortex 2*A75+6*A55;
2. DDR 2/4/8GB, EMMC 32/64/128GB, Rich configurations are available for you to choose.

Support Rear View Camera Input
Support both CVBS and AHD rear view camera input;
Support 720P & 1080P AHD camera input, the picture quality is clearer, allowing you to better detect obstacles.
Support original factory rear view camera.

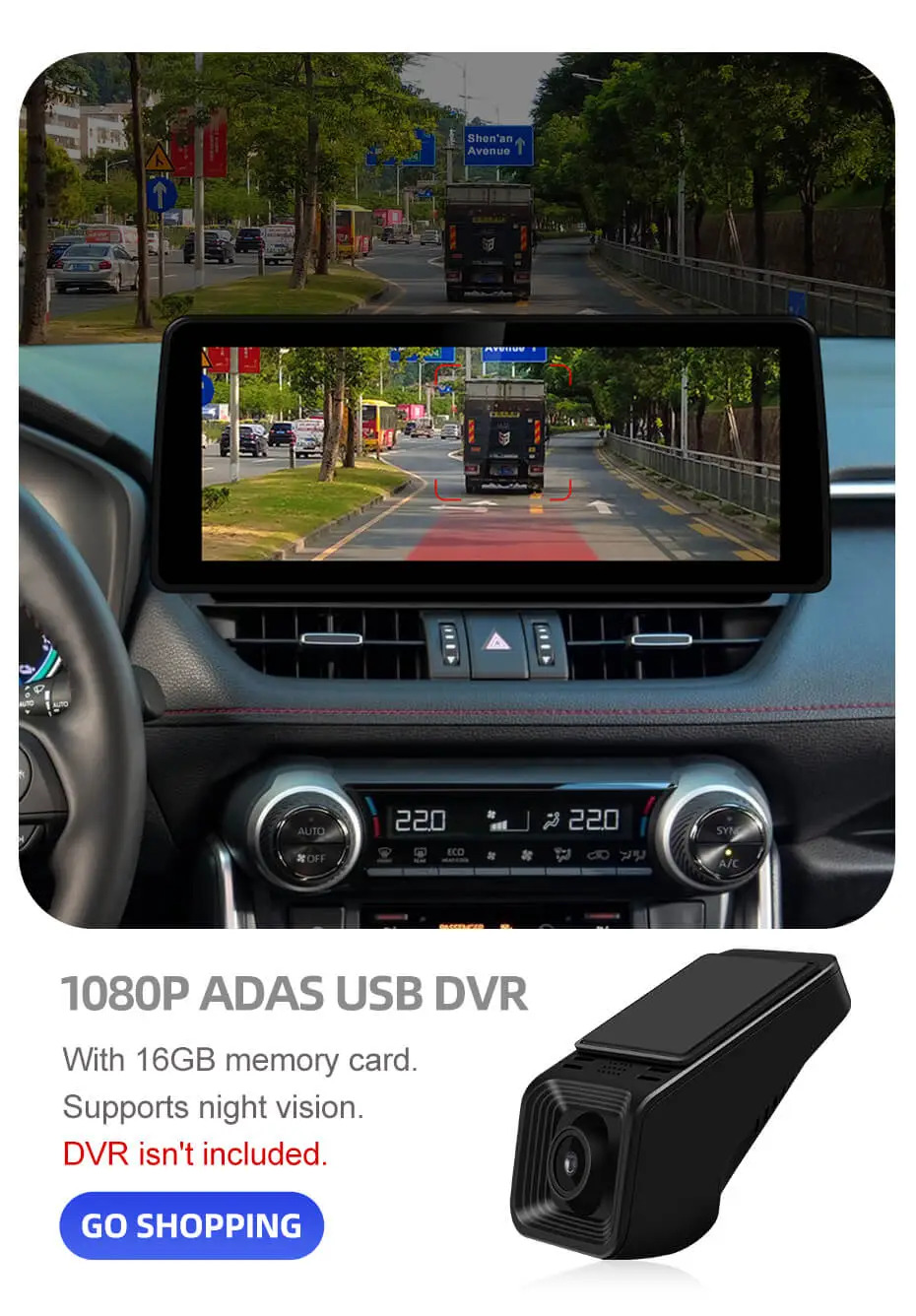

Support USB DVR input
Support ADAS USB DVR input, the screen will display the distance of obstacles and alarm.
The DVR is not included.
