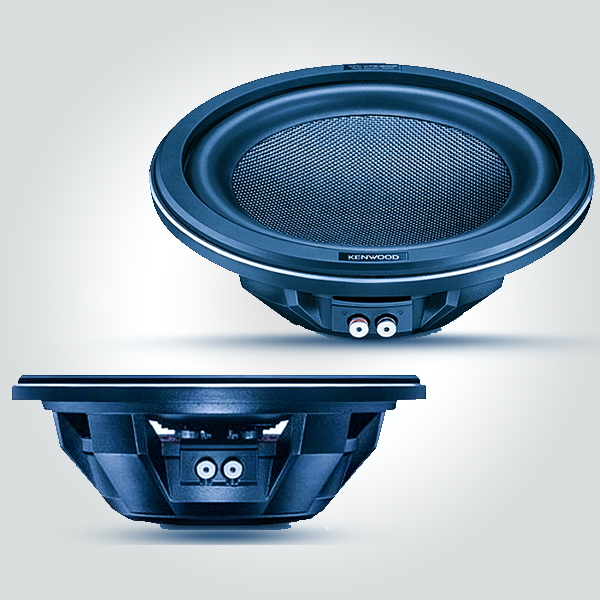

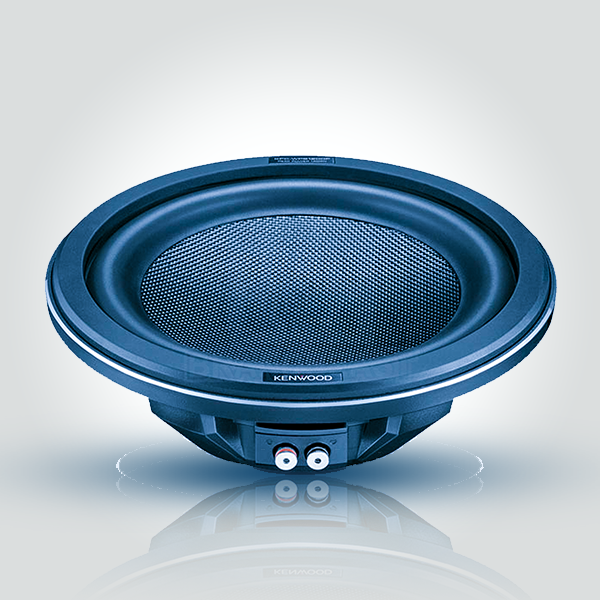

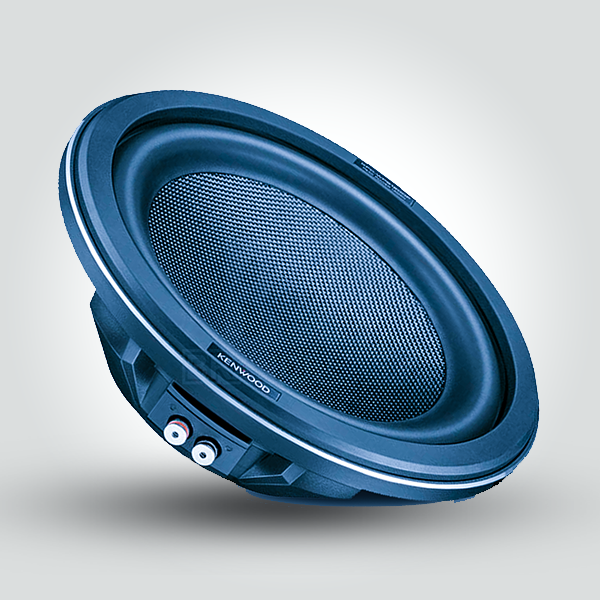

Kenwood KFC-WPS1000F 1000W 10" Flat Shallow Slimline Component Subwoofer 250 watts RMS

Tags: kenwood, kfc-wps1000f, 1000w, 10", flat, shallow, slimline, component, subwoofer, watts, rms, kfc-wps1000f, subwoofers

Kenwood KFC-WPS1000F 1000W 10" Flat Shallow Slimline Component Subwoofer 250 watts RMS

Buyer Rates (0/5):
rating
R2,650.00
  • Ex Tax:R2,650.00
  • Product Code: KFC-WPS1000F
  • Availability: In Stock

The Kenwood KFC-WPS1000F 10" Shallow Mount Subwoofer has been designed for use in hard-to-fit areas of your vehicle making them perfect for compact cars or utes. Measuring under 3.5" in depth, it allows you to get real creative with the installation.

Key Features

250mm Carbon-Glass Fiber Honeycomb Cone Subwoofer

Super Linear Spider

Smooth Linear Surround

Heat transfer structure

Shallow Mount


Speaker Features

Speaker Type Subwoofer

Peak Input Power 1000W

Rated Input Power 250W

Speaker Size 250mm

Speaker Cone Design Carbon-Glass Fiber Honeycomb Cone

Magnetic Circuit

Magnet Type Ferrit

Terminals Silver-plated Push Type

Heat Transfer Motor Circuit Yes

Magnet Cover Aluminum Die-Cast Basket

Gasket Installation two-sided

Installation Capabillity Sealed/ Ported

Speaker/woofer Specifications

Peak Input Power 1000W

Maximum Input Power 500W

Rated Input Power 250W

Woofer Cone material Carbon-Glass Fiber Honeycomb Cone

Speaker Basket Aluminum Die-Cast

Speaker Surround Rubber

Spider Type Super Linear Spider

Sensitivity 90dB/W/m

Frequency Response 35Hz ~ 800Hz

Speaker Impedance 4Ω

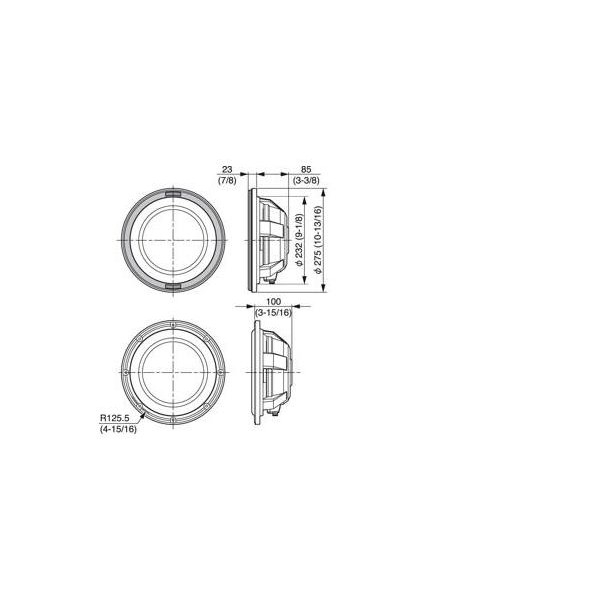

Dimensions (W x H x D) 275 x 275 x 108mm

Mounting Depth 85mm

Mouting Hole Diameter Ø 232mm

Speaker Weight 4700gr

Gross Weight 5600gr

Weight of Magnet 1080gr


Subwoofer Parameters

Nominal impedance (Z) 4Ω

DC resistance (Re) 3.0Ω

Resonant frequency (FSO) 38.6Hz

Mechanical Q factor (QMS) 5.279

Electrical Q factor (QES) 0.836

Total Q factor (QTS) 0.722

Voice coil inductance (LBM) 2.1mH

Voice coil diameter (d) 50mm

Force factor (BL) 10.7T/m

Peak excursion Xmax 7.5mm

Moving mass (MMS) 127gr.

Volume accoustic compliance (VAS) 21.05liter

Piston Area (SD) 0.034m²

Displacement 1110cc

Sealed box volume 17liter

Sealed Box Dimensions (trapezium shape) 718 x 324 x 103 x 160mm ( 21mm thick MDF)(WxHxD1xD2)

Vented box volume 17liter

Vented Box Dimensions (trapezium shape) 718 x 324 x 103 x 160mm ( 21mm thick MDF)(WxHxD1xD2)

Vented box port diameter/length Ø 76mm / 280mm


Accessories

Screws (Parker-type) Ø 5 x 30mm, 8 pieces

Badge 2 pieces

Gasket 1 piece(s)

Cushion 1 piece(s)

The Kenwood KFC-WPS1000F 10" Shallow Mount Subwoofer has been designed for use in hard-to-fit areas of your vehicle making them perfect for compact cars or utes. Measuring under 3.5" in depth, it allows you to get real creative with the installation.
